Electric sliding Cantilever Gates

Cantilever gates are sliding type gates, equipped with mechanisms allowing the gate to travel over the width of the driveway, without ground contact.  One of the main advantages of this unique feature is that it eliminates any unlikely malfunction that may be caused by debris over the surface.



Furthermore, Cantilever gates are equipped with additional security features and vandal resistant properties, as this type of gate mechanism cannot be de-tracked or de-railed.



Cantilever sliding gates can be fabricated in various designs with straight or bow tops including double hinged look alike gates for commercial and residential applications.


Our services include thorough site survey, CAD drawings, detailed quotation outlining all specifications & technical data. Planning and consultation also available. Unlike other gate installers we are manufacturers of wrought iron work. All metal fabrication takes place in our work premises with our own in house fabricators. Our engineering capabilities enable the design and commission of intricate and unique constructions.
For further details on Cantilever sliding gates please do not hesitate to contact us.

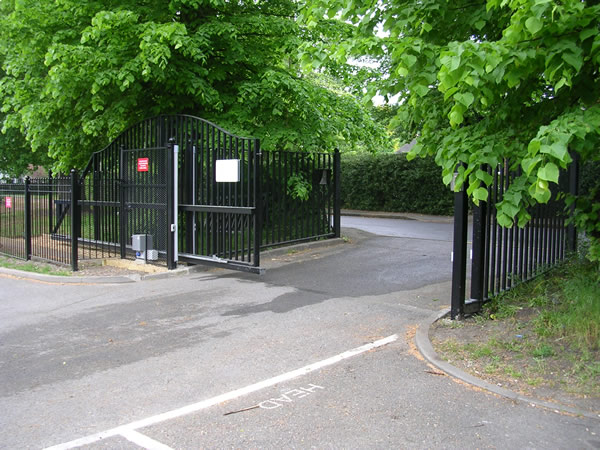

High Security Bow top Electric Cantilever Sliding Gate

Automatic, Electric Sliding Cantilever Gate Automatic, Electric Sliding Cantilever Gate Automatic, Electric Sliding Cantilever Gate Automatic, Electric Sliding Cantilever Gate Automatic, Electric Sliding Cantilever Gate Automatic, Electric Sliding Cantilever Gate
Automatic, Electric Sliding Cantilever Gate Automatic, Electric Sliding Cantilever Gate Automatic, Electric Sliding Cantilever Gate Automatic, Electric Sliding Cantilever Gate Automatic, Electric Sliding Cantilever Gate Automatic, Electric Sliding Cantilever Gate

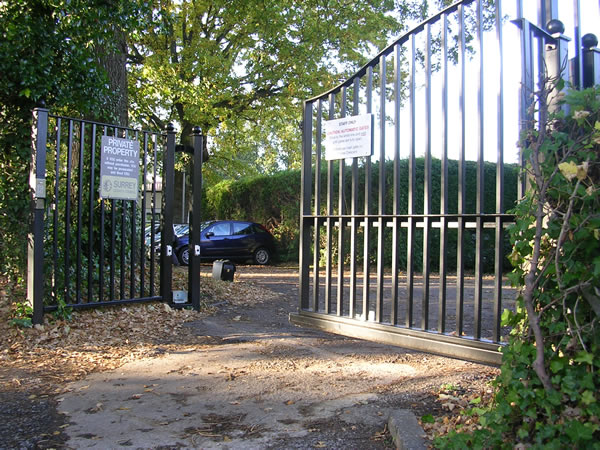

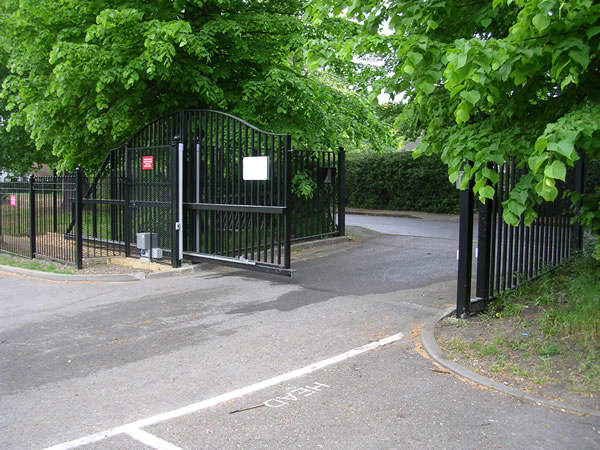

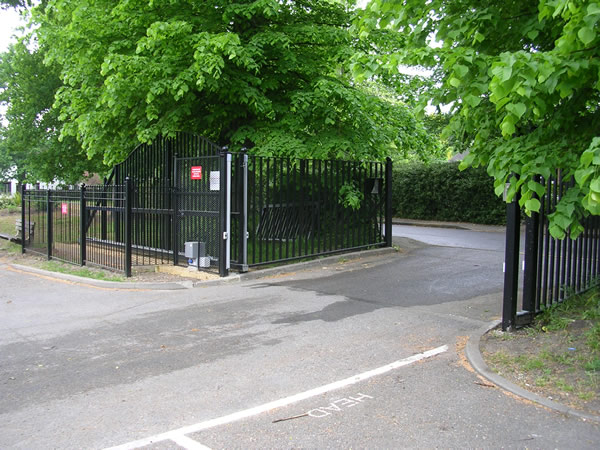

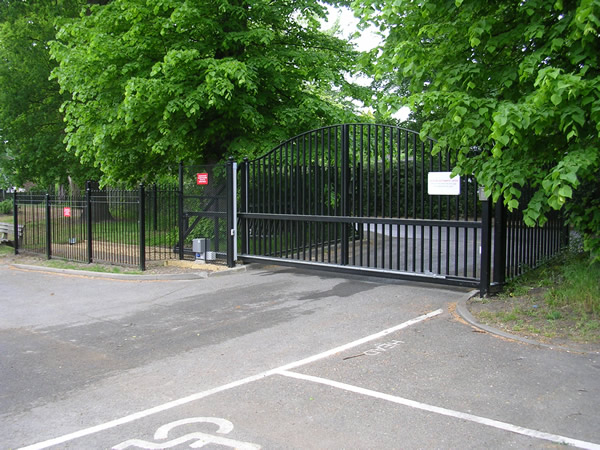

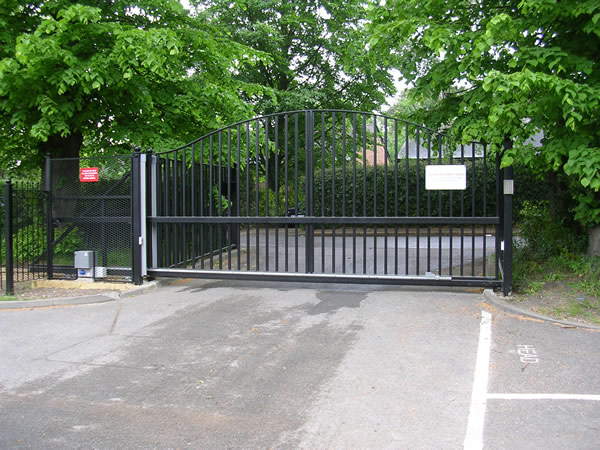

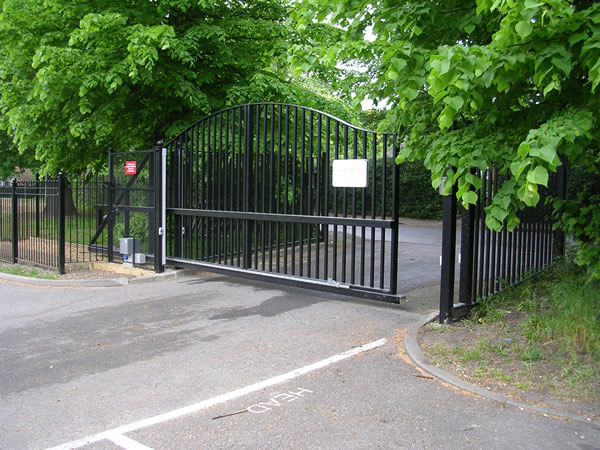

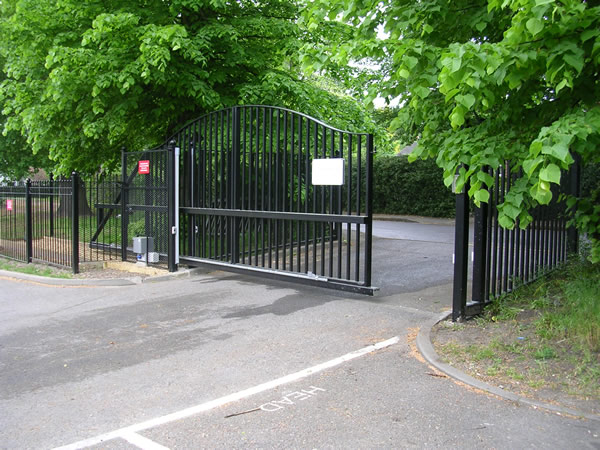

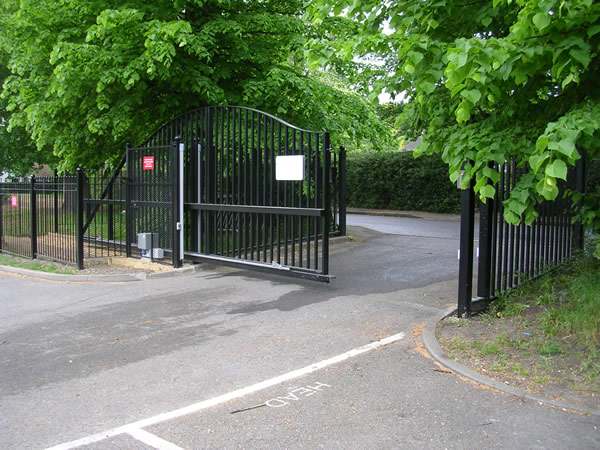

A classic style Cantilever sliding gate, designed to provide security with aesthetic properties. The heavy duty mechanism, in cooperation with the gate operator allows the extension of this large gate over the driveway with no contact on the tarmac. Various safety devises have been used including two pairs of safety photo cells and safety edges on the opening posts etc.

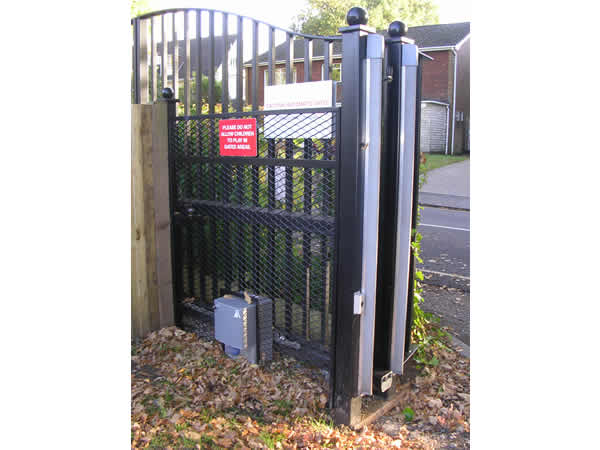

The immediate area enclosing the motor and support mechanisms have been guarded with expanded sheet metal. This is to provide protection whilst allowing access to the motor for maintenance.

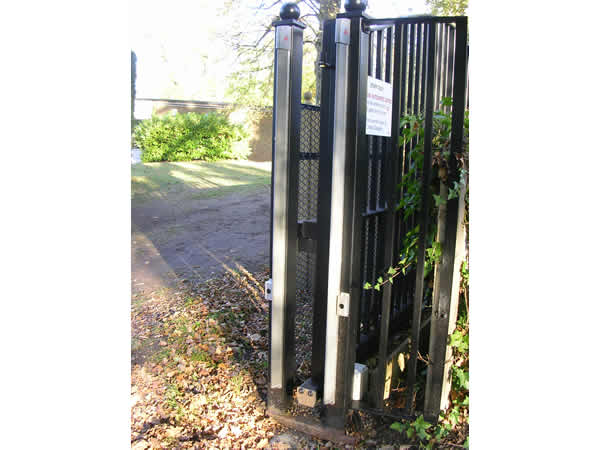

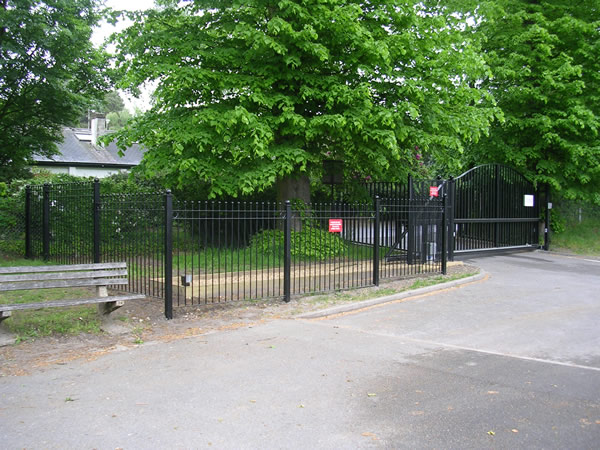

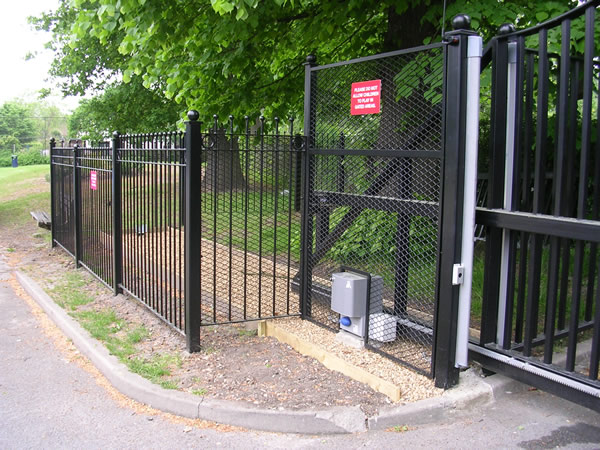

The vast opening area has been securely enclosed with metal railings. The ground where the gate slides over when in full open position, has been landscaped with control vegetation membrane and gravel minimising any maintenance. A lockable pedestrian gate has also been installed at the far end providing access to the gate mechanisms. Additional end travelling meeting points and brackets have also been installed.

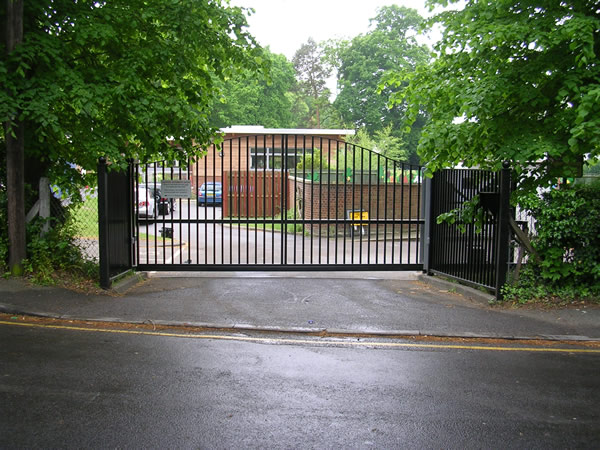

The gate has been installed further into the driveway avoiding immediate disruption to road traffic.


The access control systems include vehicle detectors, electronic key pads, intercom, timer etc.


The vandal resistant audio intercom with electronic key pad has been built as part of the railings within a bespoke weather shield unit. This is to enable drivers to communicate with the property without existing their vehicle.


Electronic timers have been installed allowing access at specific hours. The appropriate signs and road markings provide guidance to vehicles entering and exiting.



Should you be interested in a sliding cantilever gate please do not hesitate to contact us to discuss various options.
Expand / Collapse

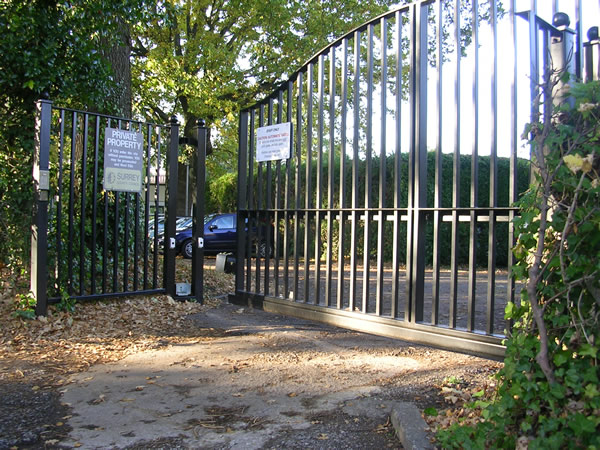

Classic Bow top Electric Cantilever Sliding Gate and access control systems

Automatic, Electric Sliding Cantilever Gate Automatic, Electric Sliding Cantilever Gate Automatic, Electric Sliding Cantilever Gate Automatic, Electric Sliding Cantilever Gate Automatic, Electric Sliding Cantilever Gate
Automatic, Electric Sliding Cantilever Gate Automatic, Electric Sliding Cantilever Gate Automatic, Electric Sliding Cantilever Gate Automatic, Electric Sliding Cantilever Gate

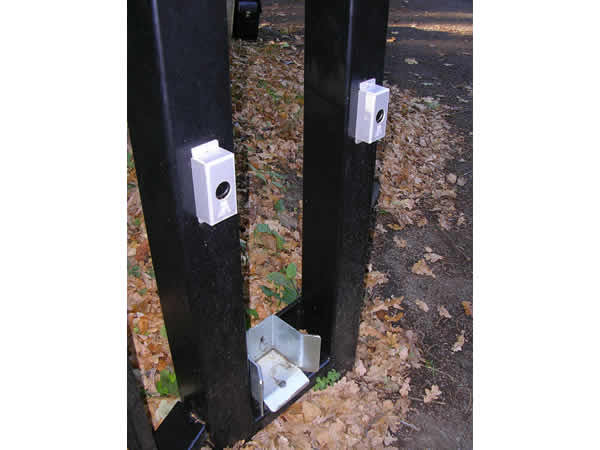

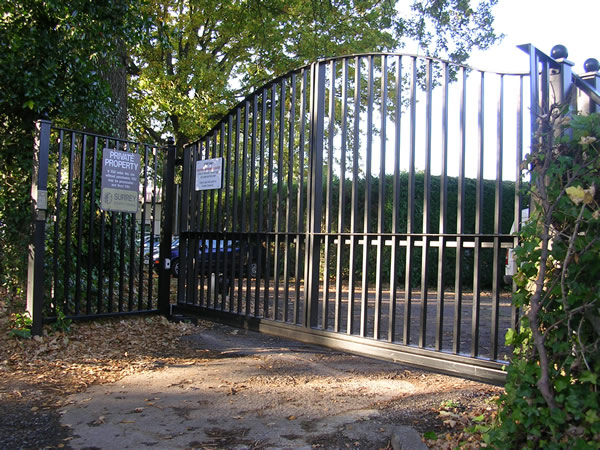

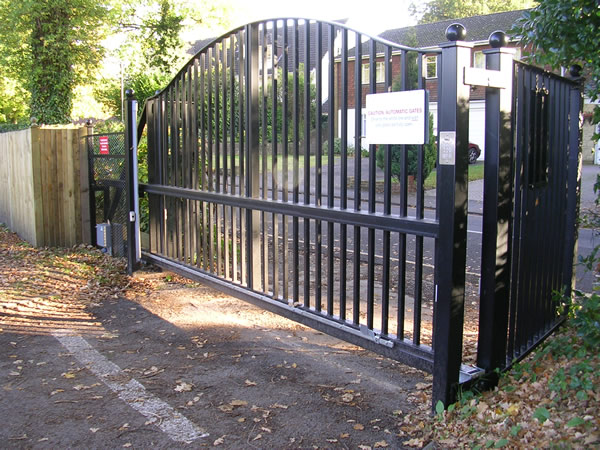

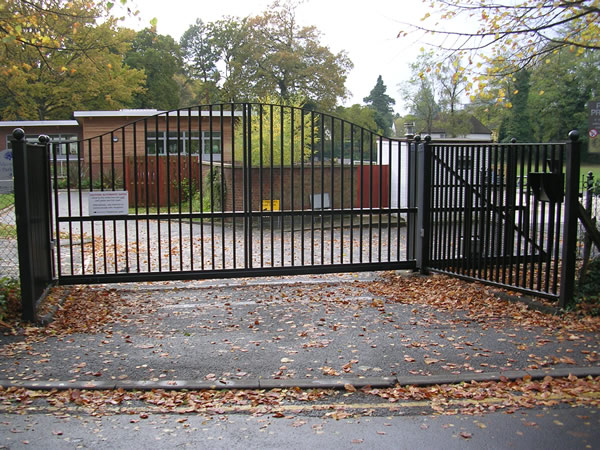

This classic style Cantilever sliding gate has been equipped with various access control devises including vehicle detectors, timers and electronic key pads. Various safety devises have been used including two pairs of safety photo cells and safety edges on the opening posts etc. The photocells have been supplied within vandal resistant casings.


the gate consists of generous 80 mm profile frame and 32 mm square vertical bars designed to give the impression of a double hinged bow top gate. To achieve this the support mechanisms have been fabricated neatly as part of the gate. Special fabricated brackets using upgraded rollers have been used to ensure long lasting and smooth gate operation. Additional full close and open meeting points have also been installed.

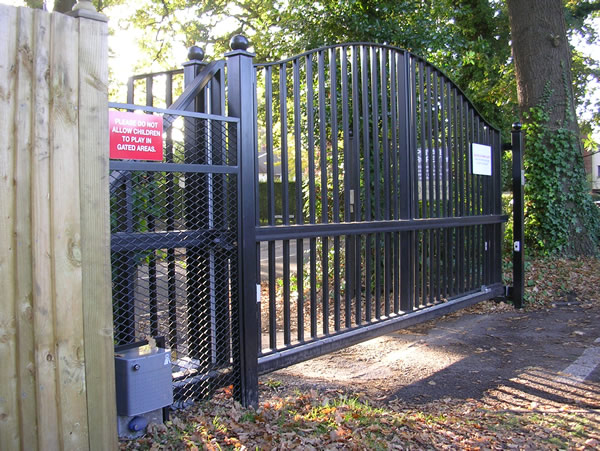

The heavy duty cantilever mechanisms, in cooperation with the gate operator allows the extension of this large gate over the driveway with no contact to the ground. The immediate area of the motor and support mechanisms has been guarded with expanded sheet metal to provide protection whilst allowing access to the motor for maintenance.


The vast opening area has been enclosed using timber fencing. The ground where the gate slides over when in full open position has been landscaped with control vegetation membrane and gravel minimising any maintenance. A lockable pedestrian timber gate has been installed to provide access for maintenance to the gate mechanisms.


Side railing panels matching the gate design have also been installed. Finally the electronic key pads have been installed flush mounted on posts on either side of the driveway.


Should you be interested in a sliding Cantilever gate please do not hesitate to contact us to discuss various options.

Expand / Collapse

Cantilever electric sliding gates for residential applications

Automatic, Electric Sliding Cantilever Gate Automatic, Electric Sliding Cantilever Gate Automatic, Electric Sliding Cantilever Gate Automatic, Electric Sliding Cantilever Gate Automatic, Electric Sliding Cantilever Gate Automatic, Electric Sliding Cantilever Gate
Cantilever sliding gates can also be used for residential applications providing all the benefits of high security, maintenance free and vandal resistant properties.

In this case study,  two types of cantilever sliding gates have been illustrated each one designed as a classic residential double leaf look alike gate. Various designs and decorative options can be used to to provide an aesthetic final product with all the secure benefits of a cantilever gate.

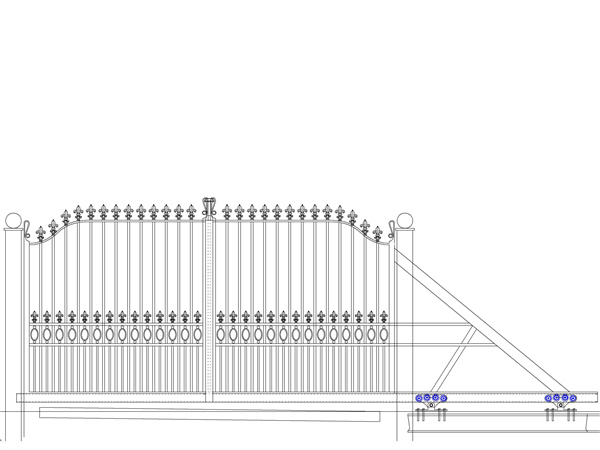

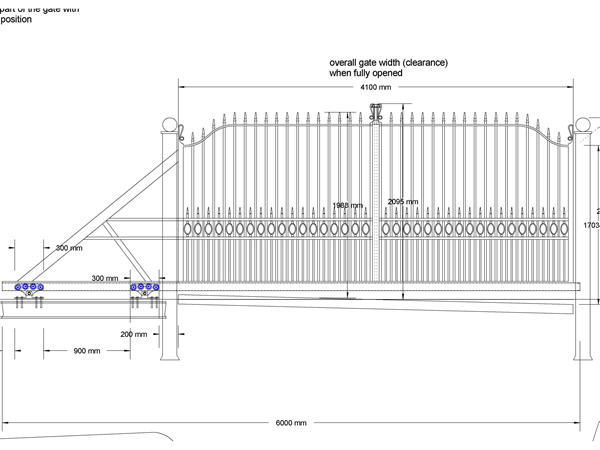

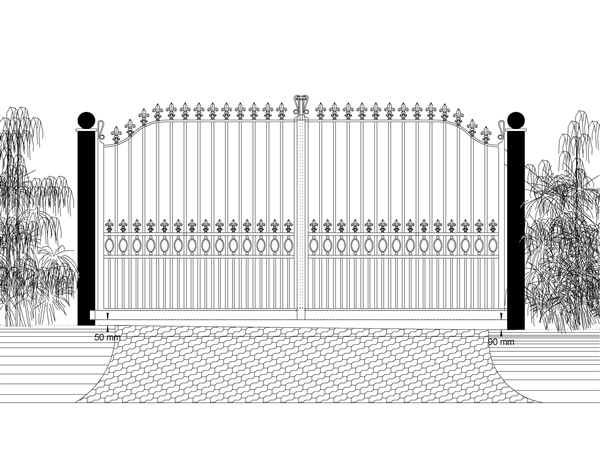

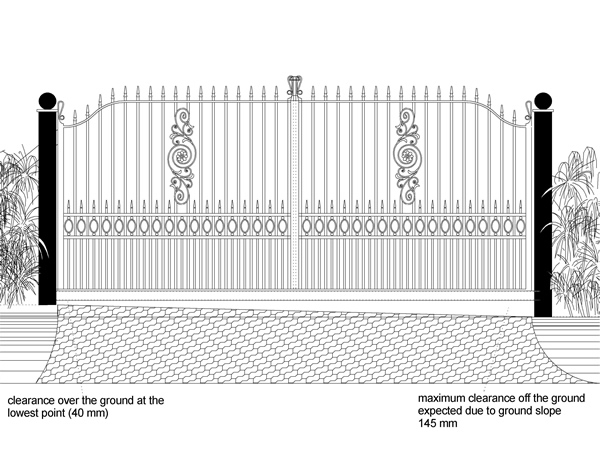

Cantilever gates can be fitted between brick piers or metal support posts. On over inclined driveways or uneven grounds cantilever gates can be the perfect solution as clearly illustrated on the first and second drawings.


Illustrated on the third and fourth drawings are the cantilever mechanisms. Although visible only from inside this area can be disguised using infilled timber panels or metal railings. The space where the cantilever gate slides open can be landscaped accordingly to provide a maintenance free area.

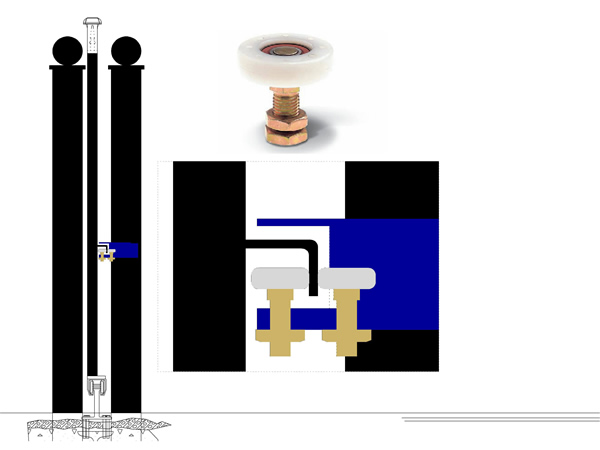

The support mechanisms withholding the gate upright whilst allowing a sliding operation can be fabricated as part of the gate with a minimum impact to the final gate design. Upgraded rollers with enclosed self lubricated bearings and Teflon covers should be used to ensure soundless, maintenance free and smooth operation avoiding any damage to the paint work. This is clearly illustrated on the fifth drawing.

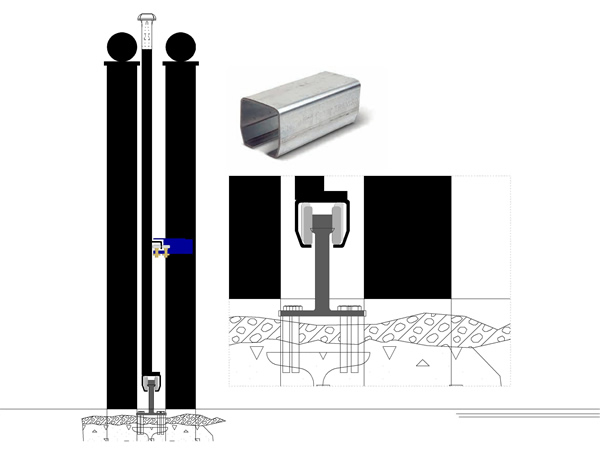

The cantilever channel transferring the gate weight to the support rollers can be installed flush with the front fascia of the gate for minimum visual impact. The channel can be fabricated as boltable allowing the same rust protection treatment as per gate to provide a perfect match. This is clearly illustrated on the sixth drawing.



Should you be interested in a residential classic or ornamental cantilever sliding electric type gate please do not hesitate to contact us.
Expand / Collapse

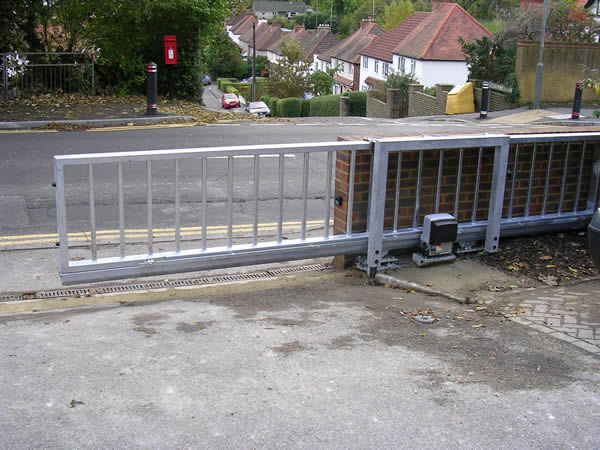

Industrial / Commercial cantilever gate providing security for parking area

Automatic, Electric Sliding Cantilever Gate Automatic, Electric Sliding Cantilever Gate Automatic, Electric Sliding Cantilever Gate Automatic, Electric Sliding Cantilever Gate

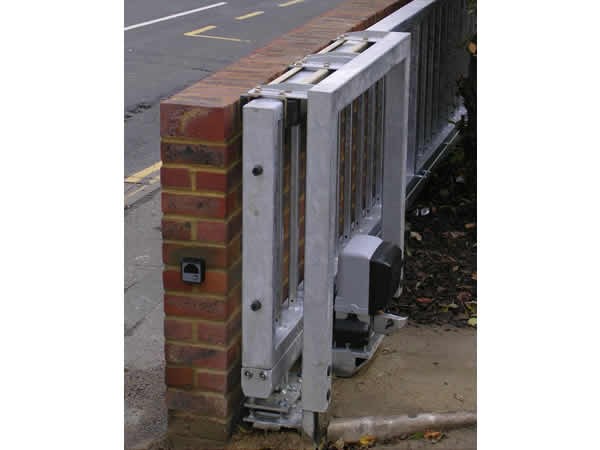

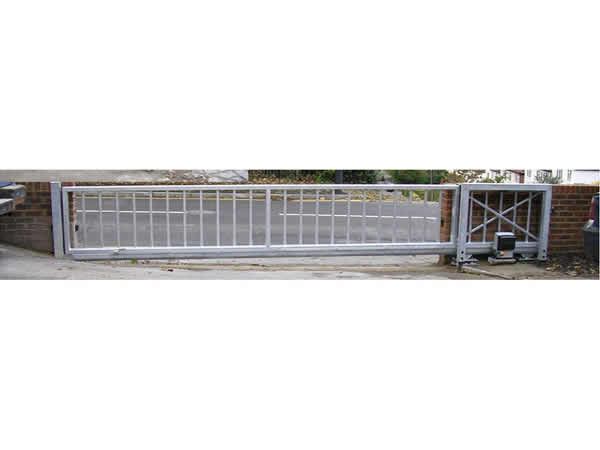

Illustrated is a hot dip galvanised self colour cantilever gate to provide access control and security for vehicles at a parking area. Cantilever gates are the ultimate solution securing parking areas. This gate type is known for its anti ram / vandal resistant properties.

Another major advantage of this type of gate mechanism is the absence of a ground track and any implications that this may cause. The cantilever gate mechanism is therefore suitable for industrial applications such as depots and factories where heavy goods vehicles and forklifts are operational. Furthermore cantilever gates can be fabricated as non climbable with high security properties for vehicles as well as pedestrians.



In this application the upright support mechanism and wheels have been fitted on the top part of the gate suitable for this gate design. Should you be interested in a sliding cantilever gate please do not hesitate to contact us to discuss various options.
